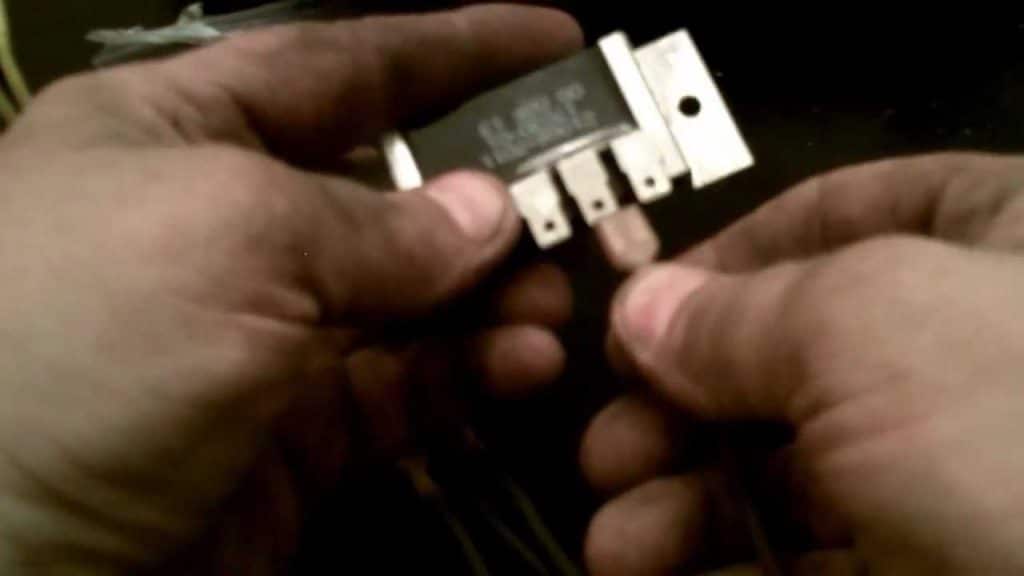

To test a voltage regulator on a lawn mower, you’ll need a multimeter. This tool helps measure the voltage output.
Now, let’s dive deeper. Voltage regulators ensure your lawn mower’s engine runs smoothly. They manage the electrical power sent to the battery and other components. A faulty regulator can lead to a dead battery or engine problems. Testing it is simple and crucial for lawn mower maintenance.
In this guide, you’ll learn the steps to check your voltage regulator. You’ll ensure your mower works efficiently. Let’s get started with the basics and keep your mower in top shape.
Introduction To Voltage Regulators
A voltage regulator is an essential part of a lawn mower. It ensures the engine runs smoothly by maintaining a constant voltage level. Without it, the mower’s electrical system could face damage. This introduction will help you understand the role and importance of voltage regulators.
Role In Lawn Mowers
The voltage regulator in a lawn mower controls the voltage that the alternator generates. It ensures the battery charges correctly and prevents overcharging. This regulation helps maintain the performance of the mower’s electrical components. Here’s a brief look at its functions:
- Regulates the voltage output
- Prevents battery overcharging
- Protects electrical components
Importance Of Regular Testing
Regular testing of the voltage regulator is crucial. It ensures the lawn mower operates efficiently. Faulty regulators can cause battery damage and affect the mower’s performance. Regular checks can prevent these issues. Here’s why testing is important:
- Detects early signs of failure
- Ensures optimal performance
- Extends the lifespan of the mower
Regular testing of the voltage regulator is a simple yet effective way to maintain your lawn mower. It helps you avoid costly repairs and ensures your mower runs smoothly.
Tools And Equipment Needed
Testing a voltage regulator on a lawn mower ensures it operates smoothly. To carry out this task efficiently, you need specific tools and equipment. This section outlines the essential tools and safety gear required for the job.
Essential Tools
Gathering the right tools is crucial for testing a voltage regulator. Here’s a list of essential tools:
- Multimeter: Measures voltage, current, and resistance.
- Screwdrivers: Both flathead and Phillips for opening panels.
- Wrenches: Useful for loosening and tightening bolts.
- Test Leads: Connects the multimeter to the circuit.
- Alligator Clips: Secure connections during testing.
Safety Gear
Safety is paramount when testing electrical components. Equip yourself with the following gear:
- Insulated Gloves: Protects hands from electric shocks.
- Safety Glasses: Shields eyes from debris and sparks.
- Non-slip Shoes: Ensures good footing while working.
- Protective Clothing: Prevents burns and other injuries.
Preparing The Lawn Mower
Before testing the voltage regulator on your lawn mower, you need to prepare the machine properly. This ensures safety and accuracy during the test.
Positioning The Mower
Start by placing your lawn mower on a level surface. This makes it easier to work on and prevents any accidental rolling. Ensure the parking brake is engaged, if available. If your mower has a manual transmission, shift it into neutral.
Next, clean the area around the engine. Dirt and debris can interfere with your work and may cause inaccurate readings. Use a cloth or a small brush to remove any build-up.
Disconnecting The Battery
Before you begin any electrical testing, disconnect the battery. This step is crucial for safety. It prevents accidental shocks and protects the electrical system of your mower.
Follow these steps to disconnect the battery:
- Locate the battery. It is usually under the seat or near the engine.
- Use a wrench to loosen the negative terminal first. This is typically marked with a minus (-) sign.
- Remove the cable from the terminal and secure it away from the battery.
- Next, loosen the positive terminal marked with a plus (+) sign.
- Remove the positive cable and secure it away from the battery.
With the battery disconnected, you can safely proceed to test the voltage regulator.
Locating The Voltage Regulator
Locating the voltage regulator on your lawn mower is the first step in testing it. Knowing its exact location helps streamline the process. In this section, we’ll explore common locations for voltage regulators and how to use the mower manual to find it.
Common Locations
Voltage regulators are usually near the engine. Check around the flywheel area. Sometimes, they are under the engine cover. In some models, regulators are mounted on the frame. Look for a small box with wires connected to it. This box is typically rectangular.
Using The Mower Manual
Your mower manual is a valuable resource. It has diagrams showing parts and their locations. Use the index to find the voltage regulator. Look for sections on electrical components. The manual will guide you step-by-step. It ensures you find the regulator quickly. Having the manual handy saves time and effort.
Testing The Voltage Regulator
Ensuring your lawn mower’s voltage regulator is working properly is crucial. A faulty regulator can lead to battery problems and poor performance. This section guides you through the steps to test a voltage regulator using a multimeter.
Setting Up The Multimeter
To start, gather your multimeter and lawn mower. Make sure the multimeter is in working condition. Follow these steps:
- Set the multimeter to DC voltage. You will typically set it to 20V.
- Locate the voltage regulator. It is usually near the battery or engine.
- Ensure your lawn mower’s battery is fully charged.
Having these items ready will make the testing process smoother.
Performing The Voltage Test
Now, it’s time to check the voltage regulator:
- Start the lawn mower and let it run for a few minutes.
- Connect the multimeter probes to the battery terminals. The red probe goes to the positive terminal, and the black probe to the negative terminal.
- Check the multimeter reading. A functional regulator should show a voltage between 13.8V and 14.5V.
- If the voltage is outside this range, the regulator may be faulty and need replacement.
These steps help you determine if your voltage regulator is functioning correctly.
Interpreting Test Results
Testing a voltage regulator on a lawn mower is only half the battle. The real challenge is understanding what the results mean. This section will help you interpret the test results. By the end, you will know what to look for and what to avoid.
Normal Readings
When testing a voltage regulator, you should see a steady voltage output. For most lawn mowers, the normal reading should be between 13.8 and 14.5 volts. This range ensures your battery stays charged without overloading. Here’s a simple way to check:
- Start the engine.
- Connect the multimeter to the battery terminals.
- Read the voltage.
If the voltage falls within the normal range, your regulator is working fine. Consistent readings are a good sign. The voltage should not fluctuate wildly.
Signs Of A Faulty Regulator
A faulty regulator can cause several issues. Look out for the following signs:
| Sign | Description |
|---|---|
| Low Voltage | If the voltage is below 13.8 volts, the battery may not charge properly. |
| High Voltage | If the voltage exceeds 14.5 volts, the battery may get damaged. |
| Fluctuating Readings | Unstable voltage means the regulator is not controlling the output properly. |
If you see any of these signs, the regulator may be faulty. Replace it to avoid further damage.
Troubleshooting Common Issues
Testing a voltage regulator on a lawn mower can seem tricky. Knowing how to spot common issues helps. Let’s explore two frequent problems: voltage irregularities and battery charging problems.
Voltage Irregularities
Voltage irregularities can damage your lawn mower. Use a multimeter to check the voltage. Set it to DC volts. Connect the multimeter leads to the battery terminals. Start the lawn mower. The voltage should be between 13 to 14.5 volts. If the reading is lower, the regulator may be faulty. A high reading also indicates a problem. This can overcharge the battery and cause damage.
Battery Charging Problems
The battery should charge properly. If it doesn’t, the voltage regulator could be the issue. Again, use a multimeter. Check the battery voltage with the engine off. It should be around 12.6 volts. Start the engine and check again. The voltage should rise to 13 to 14.5 volts. If it stays the same or drops, the regulator may need replacing. A constantly low or high voltage can drain or damage the battery.
Replacing The Voltage Regulator
Testing your lawn mower’s voltage regulator might show it needs replacing. A bad regulator can cause many issues. Fixing it ensures your mower runs smoothly. Here’s how to replace it.
Choosing A Replacement
First, select the correct voltage regulator for your mower. Check your lawn mower’s manual. It will have the part number you need. You can also find this information online. Make sure you buy the right one. Using the wrong regulator can cause more problems.
Installation Steps
Begin by turning off the lawn mower. Safety first. Disconnect the battery to avoid any shocks.
Next, locate the voltage regulator. It is usually near the engine. Consult your manual if you cannot find it.
Remove the old voltage regulator. Use a screwdriver to take out the screws. Take care not to damage any wires.
Attach the new voltage regulator. Align it with the screw holes. Secure it with the screws you removed earlier.
Reconnect the battery. Start the lawn mower to test the new regulator. Everything should work properly now.
Maintaining The Voltage Regulator
Maintaining the voltage regulator on your lawn mower is crucial. It ensures the longevity of your equipment. Regular maintenance prevents potential issues. It saves you time and money in the long run.
Regular Inspections
Inspect the voltage regulator regularly. Look for any signs of wear or damage. Check the wiring connections. They should be secure and free of corrosion. Use a multimeter to test the voltage output. It should match the specifications in the manual. If it doesn’t, the regulator may need replacing.
Preventative Measures
Take steps to protect the voltage regulator. Keep the mower clean. Dirt and debris can cause overheating. Store the mower in a dry place. Moisture can damage electrical components. Use a surge protector. It helps protect the regulator from voltage spikes.
Frequently Asked Questions
How To Test If A Voltage Regulator Is Bad?
To test a voltage regulator, use a multimeter. Measure the input and output voltages. Ensure the output remains stable under load. If the voltage fluctuates, the regulator may be bad.
How To Test A Voltage Regulator Rectifier On A Lawn Mower?
To test a voltage regulator rectifier on a lawn mower, use a multimeter. Measure the output voltage. It should be between 13. 5-14. 5 volts. Check for continuity in the rectifier. Inspect for damaged wires or connectors. Ensure the battery is fully charged before testing.
Will An Engine Run With A Bad Voltage Regulator?
Yes, an engine can run with a bad voltage regulator, but it may cause electrical issues. The battery might not charge correctly, leading to potential engine performance problems. It’s best to replace a faulty voltage regulator promptly.
Why Won’t My Lawn Mower Battery Stay Charged?
Your lawn mower battery may not stay charged due to faulty connections, a bad battery, or a failing alternator. Check for corrosion, loose wires, or replace the battery if needed. Regular maintenance ensures longer battery life.
Conclusion
Testing a voltage regulator on your lawn mower is essential. Regular checks ensure your mower runs smoothly. Follow the steps outlined for accurate results. Use a multimeter to measure the voltage output. Compare the readings with the mower’s manual. Replace the regulator if it shows faulty readings.
This keeps your lawn mower in good working condition. Safety first: always disconnect the battery before testing. Proper maintenance extends the life of your mower. Happy mowing!
