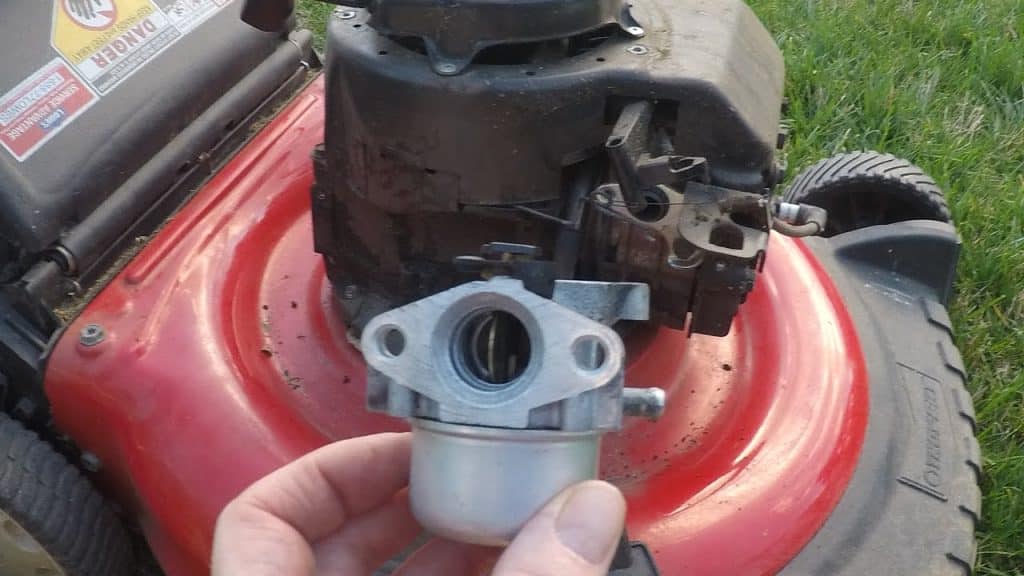

Cleaning the carburetor on a Troy Bilt lawn mower is crucial for performance. A clean carburetor ensures your mower runs smoothly and efficiently.
Maintaining your lawn mower involves more than just changing oil and sharpening blades. The carburetor plays a vital role in the engine’s operation. Dirt and debris can clog it, causing poor performance or even failure to start. Understanding how to clean the carburetor can save you time and money on repairs.
This guide will walk you through the steps needed to clean the carburetor on your Troy Bilt lawn mower. Whether you’re a beginner or have some experience with small engine maintenance, this easy-to-follow process will help keep your mower in top shape.
Tools And Materials
Cleaning the carburetor on a Troy Bilt lawn mower is essential for maintaining optimal performance. Using the right tools and materials ensures a smooth, hassle-free process. This guide will help you gather everything you need.
Essential Tools
Having the proper tools is crucial. Here are the essential tools you will need:
- Screwdrivers: Both flathead and Phillips screwdrivers are needed.
- Socket Wrench Set: A variety of sizes will be useful.
- Needle-Nose Pliers: These help with small, hard-to-reach parts.
- Brush: A small wire brush is perfect for scrubbing.
- Safety Gear: Gloves and goggles to protect your hands and eyes.
Required Materials
In addition to tools, several materials are required for cleaning the carburetor:
| Material | Purpose |
|---|---|
| Carburetor Cleaner | To remove dirt and grime from the carburetor. |
| Cleaning Cloth | Wipe down parts after cleaning. |
| Gasket and Diaphragm Kit | Replace any worn-out components. |
| Fuel Line | In case the existing line is damaged. |
Having these tools and materials ready will make your task easier. It will also ensure your Troy Bilt lawn mower runs efficiently.
Preparation
Preparing to clean your Troy Bilt lawn mower’s carburetor is crucial. This ensures a smooth and safe cleaning process. Follow these steps to get started effectively.
Safety Precautions
Before you begin, it’s important to take safety seriously. Follow these safety measures to avoid accidents.
- Disconnect the Spark Plug: This prevents the mower from starting accidentally.
- Wear Protective Gear: Gloves and safety glasses protect your hands and eyes.
- Work in a Well-Ventilated Area: Ensure proper ventilation to avoid inhaling fumes.
Removing The Lawn Mower Cover
To access the carburetor, you need to remove the lawn mower cover. Here’s how to do it.
- Locate the Screws: Find the screws holding the cover in place.
- Use a Screwdriver: Unscrew them carefully with a suitable screwdriver.
- Lift the Cover: Gently lift and set it aside, ensuring no wires are disconnected.
With the cover removed, you now have access to the carburetor. This preparation is essential for a thorough cleaning.
Accessing The Carburetor
Accessing the carburetor is a key step in cleaning it. A clean carburetor helps your Troy Bilt lawn mower run smoothly. In this section, we’ll guide you through the process.
Locating The Carburetor
The first step is to locate the carburetor. It is usually behind the air filter. The carburetor controls the fuel and air mixture for the engine. Here’s a simple way to find it:
- Look for the air filter housing.
- The carburetor is right behind the air filter.
Once you know where it is, you can proceed to the next step.
Detaching The Air Filter
To access the carburetor, you need to detach the air filter. The air filter cover is held by screws or clips. Follow these steps:
- Remove the screws or unclip the cover.
- Take out the air filter carefully.
This will expose the carburetor. Now, you can clean it properly.
Disassembling The Carburetor
Cleaning the carburetor on your Troy Bilt lawn mower is essential. First, you need to disassemble the carburetor. This process involves removing the carburetor and taking apart its components. This guide will help you understand each step clearly.
Removing The Carburetor
To remove the carburetor, follow these steps:
- Turn off the lawn mower and disconnect the spark plug wire. This prevents accidental starting.
- Locate the carburetor. It is usually near the air filter and fuel tank.
- Remove the air filter cover and the air filter itself. This gives you better access to the carburetor.
- Disconnect the fuel line from the carburetor. Use a clamp or container to catch any leaking fuel.
- Unscrew the bolts or screws holding the carburetor in place. Keep these parts safe for reassembly.
- Gently pull the carburetor away from the engine. Be careful not to damage any gaskets or seals.
Taking Apart The Carburetor Components
Once you have removed the carburetor, you need to take it apart. Here are the steps:
- Identify the main components of the carburetor. These include the float bowl, float, needle valve, and jets.
- Remove the float bowl by unscrewing the bolts. This exposes the float and needle valve.
- Carefully lift the float and needle valve out of the carburetor. These parts are delicate, so handle them with care.
- Use a small brush or compressed air to clean the float bowl. Remove any dirt or debris.
- Check the jets for clogs. Use a thin wire or carburetor cleaner to clear any blockages.
- Inspect the gaskets and seals for any damage. Replace them if necessary.
By carefully removing and taking apart the carburetor, you can clean each part thoroughly. This ensures your Troy Bilt lawn mower runs smoothly.
Cleaning Process
The cleaning process of a carburetor is crucial for the efficiency of your Troy Bilt lawn mower. Over time, dirt and debris can clog the carburetor, affecting its performance. This guide will walk you through the essential steps to clean your carburetor effectively.
Cleaning The Carburetor Body
Start by removing the carburetor from the lawn mower. Make sure the engine is cool before you begin. Disconnect the fuel line and remove any screws holding the carburetor in place. Gently take it out.
Now, use a carburetor cleaner spray to remove dirt and grime from the carburetor body. Spray the cleaner generously on all surfaces. Use a brush to scrub away stubborn deposits. Pay special attention to small crevices where dirt can accumulate.
Rinse the carburetor with clean water. Make sure it is thoroughly dry before reassembling it. Avoid using high-pressure water as it can damage delicate parts.
Cleaning The Jets And Ports
Jets and ports are crucial for the carburetor’s function. They control the fuel flow into the engine. Clogged jets can lead to poor performance.
Remove the jets carefully using a screwdriver. Soak them in carburetor cleaner for a few minutes. This helps to dissolve any build-up inside.
Use a thin wire or a needle to clean out the jets. Ensure there is no debris left inside. Rinse them with clean water and let them dry.
Check the ports for blockages. Use the same method to clean them as you did with the jets. Reattach the jets and ports to the carburetor once they are clean and dry.
Following these steps will ensure your Troy Bilt lawn mower’s carburetor is clean and functioning efficiently.
Reassembling The Carburetor
Once you have cleaned the carburetor of your Troy Bilt lawn mower, the next step is to reassemble it. Proper reassembly is crucial for the engine to run smoothly. Follow these steps to ensure you reattach and secure all components correctly.
Reattaching The Components
Start by reattaching the float and the needle valve. Ensure the float moves freely. Next, insert the main jet and secure it with the correct screwdriver. Reattach the throttle linkages and springs. Make sure each component is connected as it was before disassembly.
- Reattach the float and needle valve
- Insert the main jet
- Secure the throttle linkages
- Check connections
Afterward, place the carburetor bowl back. Tighten the bowl nut to secure it. Ensure the gasket is in place to prevent leaks. Reattach the choke linkages and ensure they move freely. Double-check all connections to ensure nothing is loose.
Securing The Carburetor
Now, reattach the carburetor to the engine. Position it correctly and secure it with bolts. Tighten each bolt evenly to avoid any misalignment. Reconnect the fuel line to the carburetor. Ensure the fuel line is tight and not leaking.
- Reattach carburetor to engine
- Tighten bolts evenly
- Reconnect fuel line
- Ensure tight connections
Finally, reconnect the air filter and housing. Tighten all screws and bolts. Ensure the air filter is clean before reattaching. This ensures optimal engine performance. Your carburetor is now reassembled and ready for use.
| Step | Action |
|---|---|
| 1 | Reattach float and needle valve |
| 2 | Insert main jet |
| 3 | Secure throttle linkages |
| 4 | Place carburetor bowl back |
| 5 | Reattach choke linkages |
| 6 | Reattach carburetor to engine |
| 7 | Reconnect fuel line |
| 8 | Reconnect air filter and housing |
Reinstalling The Carburetor
After cleaning the carburetor on your Troy Bilt lawn mower, it’s time to reinstall it. This step is crucial for the mower to work properly. Follow these steps carefully to ensure everything is in place.
Reconnecting The Air Filter
First, reconnect the air filter. The air filter housing should align with the carburetor. Secure it with screws to prevent any air leaks. The air filter keeps debris out of the carburetor. Make sure it is clean before reinstalling.
Reattaching The Lawn Mower Cover
Next, reattach the lawn mower cover. This protects the internal parts from dirt and debris. Align the cover with the mower body. Secure it with screws or clips.
Double-check everything is tight and secure. This will ensure your mower operates smoothly.
Testing The Lawn Mower
Cleaning the carburetor on a Troy Bilt lawn mower ensures smooth performance. Remove the carburetor, clean all parts, and reassemble. Regular maintenance prevents clogs and keeps the mower running efficiently.
Testing the lawn mower after cleaning the carburetor is crucial. This ensures it works properly and helps identify any remaining issues. Let’s go through the steps to test your Troy Bilt lawn mower.Starting The Engine
To start, make sure the lawn mower is on a flat surface. Check the fuel level and add fresh fuel if needed. Next, engage the choke lever and pull the starter cord. If the engine starts smoothly, it’s a good sign. If not, you may need to check the carburetor again.Checking For Smooth Operation
Once the engine is running, let it idle for a few minutes. Listen for any unusual noises or vibrations. Slowly increase the throttle and check for smooth acceleration. If the mower runs without sputtering or stalling, the carburetor is clean. Push the mower around and see how it performs. If it cuts grass evenly and doesn’t lose power, the job is complete. “`Maintenance Tips
Maintaining your Troy Bilt lawn mower is crucial for its performance. A clean carburetor ensures smooth operation and extends the lifespan of your mower. Here are some essential maintenance tips to keep your carburetor in top shape.
Regular Cleaning Schedule
A regular cleaning schedule is vital for your lawn mower’s carburetor. Aim to clean the carburetor at least once every season. This prevents the buildup of dirt and debris.
Create a simple cleaning routine. Check the carburetor before and after the mowing season. Use a carburetor cleaner to remove any clogs. This ensures your mower runs efficiently.
Signs Of Carburetor Issues
Recognizing signs of carburetor issues can save you time and money. Here are some common symptoms:
- Difficulty starting: The engine takes longer to start or doesn’t start at all.
- Rough idling: The engine runs unevenly when idle.
- Black smoke: Excessive smoke from the exhaust indicates a rich fuel mixture.
- Poor performance: The lawn mower loses power or stalls frequently.
If you notice any of these signs, it’s time to clean the carburetor. Regular maintenance can prevent these issues and keep your mower running smoothly.
Frequently Asked Questions
How Often Should You Clean A Carburetor On A Troy Bilt Lawn Mower?
It is recommended to clean the carburetor at least once a season. Regular maintenance ensures optimal performance and longevity of your lawn mower.
What Are The Signs Of A Dirty Carburetor?
A dirty carburetor may cause engine starting issues, poor performance, and black smoke from the exhaust. Regular inspection can help identify these signs early.
Can A Dirty Carburetor Affect Lawn Mower Performance?
Yes, a dirty carburetor can significantly affect performance. It can cause starting problems, reduced power, and inefficient fuel usage.
What Tools Are Needed To Clean A Carburetor?
Basic tools include a screwdriver, socket wrench, and carburetor cleaner. Having a clean workspace and safety gloves is also recommended.
Conclusion
Cleaning the carburetor on a Troy Bilt lawn mower is essential. A clean carburetor ensures better performance. Follow the steps carefully for best results. Regular maintenance extends the mower’s life. It’s a simple task that saves money. You don’t need expert skills.
Just a bit of time and patience. Always consult the manual for guidance. A well-maintained mower makes your lawn look great. Happy mowing!
